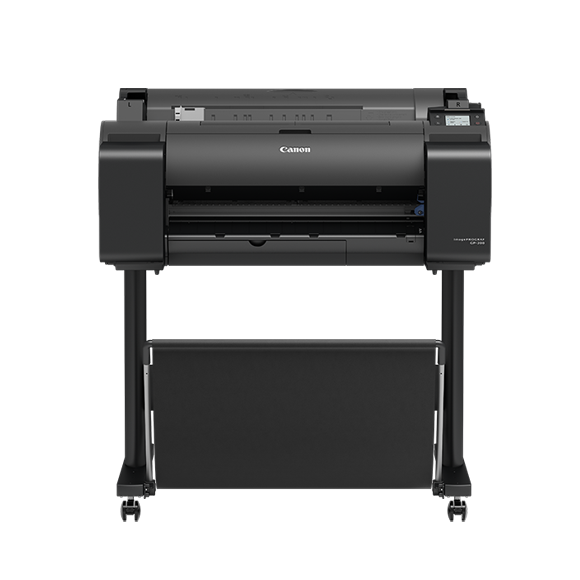

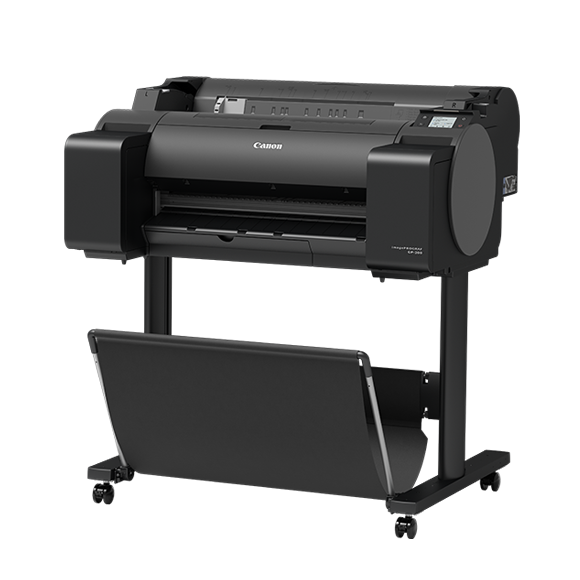

Canon imagePROGRAF GP-200

5 Colour Pigment Based Ink Plus Fluorescent Pink Ink

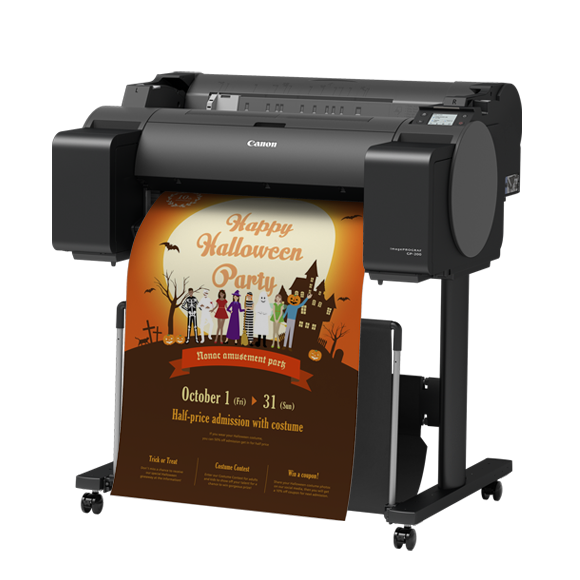

The GP-200 device features a 5-colour pigment based plus Fluorescent Pink Ink. The new Fluorescent Pink Ink allows the reproduction of graphic posters and signage, expanding the colour gamut for designers to replicate the exact colours for their business needs and branding. Canon’s unique Radiant Infusion which layers the newly developed Fluorescent Pink Ink with other inks on the paper surface during printing creating bright and soft colour reproduction. Available in 130 ml or 300 ml ink tanks. 540 ml of ink ships standard with the GP-200.

Small Footprint

A good fit for small offices, the compact GP-200 has a small footprint for a 24″ large format aqueous inkjet printer.

Direct USB Thumb Drive Printing

JPEG and PDF files can be directly printed from the GP-200. Simply load your files onto your USB drive, step right up to the printer and plug your USB drive into the port.

500 GB Hard Drive

A built-in 500 GB hard drive within the printer can increase productivity by relieving workload from the host computer, while providing a large capacity for print job data storage and retrieval.

Operation Panel

The GP-200 features a 3″ colour touchscreen operation panel making it easy to view printer information as well as perform simple operations.

Wi-Fi Compatible[3]

Printing jobs quickly is critical on the work site and in the office. The Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow- perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation.

Print Head PF-07

The 6-channel PF-07 Print Head is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing. This printer boasts Canon’s print-head technology that lays down ink with outstanding speed and accuracy. The PF-07 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that help produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output (max.) with fine lines that are accurate to ±0.10% and as thin as 0.02mm.

Sub-Tank Ink System

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

Borderless Printing

Supports borderless printing on all rolls and custom widths to reduce the need for paper trimming.

Security Features[4]

The GP Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:

Secure Communication

• 802.1x Authentication
• SNMPv3
• SSL/TLS
• IPSec

Functionality Restrictions

• Panel Lock by Remote UI
• Remote UI Multilevel
• Hide IP From Panel
• Panel Access Control
• Job Storage and PIN Printing

Secure Storage

• Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)

The following functions can be disabled in administrator mode:

• Internet Connection
• FTP and Telnet communication protocols
• Job Log Look-up

Main Unit Specs
