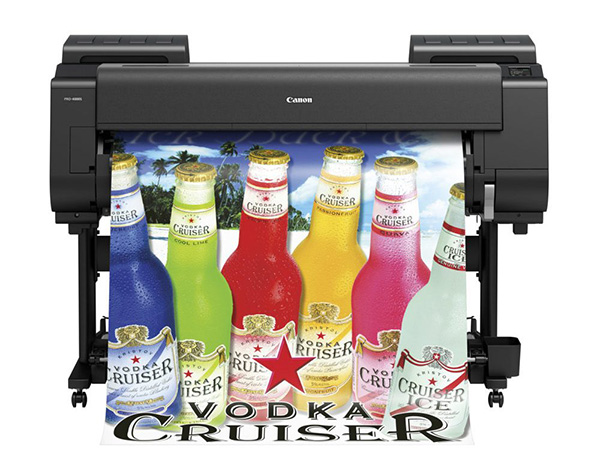

Canon imagePROGRAF PRO-4000S

The new LUCIA PRO ink set adopts newly formulated 8-colour pigment inks. These inks help you achieve fantastic colour reproduction, image clarity, and fine lines ideal for creating vivid posters and advertising displays.

This new ink set helps:
• Enhance red colour performance
• Reduce graininess
• Enhance dark area reproduction.

The PF-10 print head with anti-clogging FINE technology generates fast print speeds and reduces the possibility of clogging. Ink ejection conditions are precisely checked by 27 sensors, and if a clog is detected, another nozzle will automatically provide back-up.

To enhance print performance, the 8-colours utilize all 12 ink channels in the print head. The LUCIA PRO ink is arranged in a mirror layout on the print head, symmetrically arranging the most important colours: C, M, Y, and MBK. This layout allows for the same ejection order of the four key colours during the bidirectional printing process resulting in denser ink placement and faster prints speeds.

This new print head is wider than previous imagePROGRAF print heads requiring models to only have one instead of two. Having only one print head means a more compact printer that achieves faster print speeds while maintaining high print quality.

The imagePROGRAF printers are powered by the L-COA PRO high-speed image processing engine. With three new processing chips, this high-precision control engine performs the processing of massive image data, and controls the optimal ink layout that produces high resolution prints.

The colour calibration function is designed to produce consistent colour reproduction. This new printer includes an upgraded, built-in colour densitometer that offers precise calibration and colour matching. Using a three-colour LED and a newly developed condenser lens the sensor enables accurate recalibration of the device, allowing you to maintain a low average printer-to-printer colour difference. The colour calibration is finished quickly after a few simple steps on the printer’s operation panel. A single colour calibration performed with one type of media can be applied to media in all printing modes.

Device Management Console
The Device Management Console software, ideal for fleet management, lets you perform colour calibrations remotely. This software lets you monitor the printer status of up to 50 units from any location in the world, be notified via email when an error has occurred, or check the amount of ink left in the printers without ever having to leave the comfort of your desk.

The newly developed unibody structure provides a platform for stable print head scanning which allows for precise ink drop placement.

The optional dual purpose Multi-Function Roll can act as a two roll media system during the day when production is high and become a bi-directional Take-up unit at night when large, unattended prints are running.

Dual –Roll Feeding: The dual-roll feeding mechanism enables users to load a second roll of a different media type and size so that users can simultaneously switch from printing on matte to gloss paper without pausing their work to reload. Additionally, the second roll can be used to support high-volume printing be enabling two rolls of the same media to be fed to the printer.

Bi-Directional Rewinding: The Multifunction Roll System may also be configured by the operator as a take-up unit to rewind longer printouts. The user can choose to rewind media with the printed surface on the outside or the inside of the roll, thereby supporting “bi-directional rewinding”.

Loading media on a Canon larger format printer has never been easier. Simply set the roll holder in the printer, rotate the roll holder handles and let the media automatically feed into the printer. No need to touch the paper; decreasing the risk of creasing and blemishes.

The large 3.5″ colour LCD touch panel makes it easy to view printer information as well as perform simple operations.

Stay Connected. A first for the imagePROGRAF large format printers, Wi-Fi connectivity is now standard with this new PRO series.

PDF and JPEG files can be directly printed on the imagePROGRAF PRO-4000S from a USB thumb drive. Simply input the thumb drive into the USB port on the printer, preview the image on the operation panel, and print! Fast and easy printing without the use of a computer.

Available in 160ml, 330ml, and 700ml ink tanks, you have the flexibility to purchase ink based on the colour frequency at which you print.

The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

The imagePROGRAF PRO-4000S features a new multipositional basket that can be freely adjusted to enable various output positions and options:
• Catch Basket
• Flatbed Stacking
• Slope (can be used to display a print)

In today’s printing environment, it is more important than ever to understand how much ink and media each print job is costing your business. Both Mac® and Microsoft® compatible, Accounting Manager serves as a powerful feature, used for accurately managing your print costs. With the Accounting Manager feature you can track how much ink and paper is being consumed when printing in large format of up to 50 printers! Each individual ink tank can have its own cost associated to it, as well as a variety of different paper types. Costs can be assigned to ink and paper to determine expenses based on your own “Cost of Goods”. The user can also input a variable cost that will be added to the total of the print cost. The data is exportable to a .csv format for Microsoft Excel so the data can be used for billing purposes. This feature will allow you to determine the cost of each print based on your actual cost. Features include: job Cost (ink, Media and variable cost inputted by user) ink consumed per job,* media consumed per job, job completion time and more.

A built-in 320 GB hard drive within the printer increases productivity by relieving workload from the host Mac or PC, while providing a large capacity for print job data storage and retrieval. This 320 GB hard drive enables job data to be stored in protected mailboxes for easy access via web browser or at the printer for job re-printing. The embedded hard disk is ideal for medium to large workgroups to share a printer efficiently with multiple users, offering sample job storage space.

This utility makes it easy to print large-format documents created in Microsoft Word, Excel, or PowerPoint. The Plug-in appears in a tool bar inside the Microsoft application and has an easy-to-follow “Wizard”. The Plug-in will bypass the printer driver to simplify the printing process. A few simple steps convert your 8.5″ x 11″ office document to poster size.

Canon’s included PosterArtist Lite poster creation software gives users the ability to quickly and easily create professional large format prints. Users simply follow the program’s four (4) easy steps to create posters that can be used in applications such as Office presentation, Trade shows, Retail Signage, and much, much more. The PosterArtist QuickCopy feature provides an easy solution for a CanoScan desktop scanner to be used as a copier, making letter-size flyers and documents into full-size posters with a touch of a button.

For those with more demanding poster creation needs, Canon’s optional PosterArtist offers advanced features such as Auto Design, Variable Data, and in-application image editing features, as well as additional templates, royalty-free photos, and clip art. The built-in weblink feature in PosterArtist Lite links users directly to the PosterArtist website for useful hints and tips, and even more free content for download.

Quick Utility Toolbox is a portal to where all of the Canon printer software and tools can be accessed.
